Piaggio Vehicles — manufacturer imagery from the official website — source
| 1 | Battery Capacity | 8 kWh |
| 2 | Max Power | 9.55 kW |
| 3 | Payload (Kgs) | 390 Kgs |
| 4 | GVW / GCW (Kgs) | 975 kg |
| 5 | Range | 120 km |
| 6 | Charging Time | 3 hours 45 minutes |

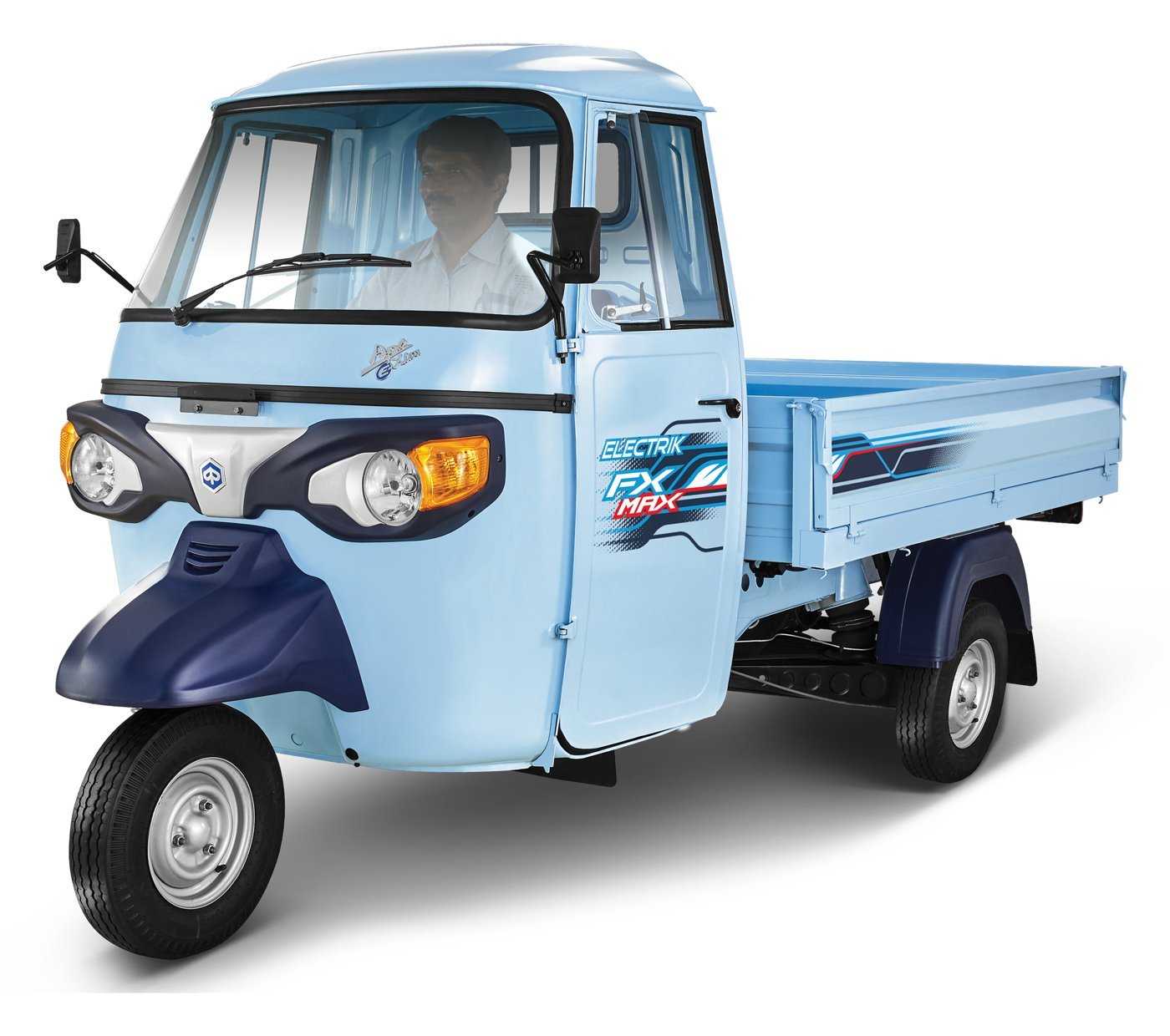

Piaggio Ape E Xtra FX Max
On requestNewEVThree-wheeler
Available variants
- 1920/Electric ( Electric )
Pricing
On request
Send an enquiry with the quantity and your destination country — our team confirms availability, price and shipping.
Send enquiryThe Piaggio Ape E Xtra FX Max is an electric goods-carrying three-wheeler with a 8 kWh battery, 9.55 kW of peak power and a 390 Kgs payload.
Performance
- Max Power
- 9.55 kW
- Engine
- Advanced telematics 2.0
- Fuel Type
- Electric
- Max Torque
- 45 Nm
- Gradeability (%)
- 19 %
- Max Speed (km/h)
- 50
- Turning Radius (mm)
- 3500
- Range
- 120 km
- Battery Capacity
- 8 kWh
- Type of Motor
- Electric Motor
- Product Type
- L5N (High Speed Goods Carrier)
- Carrier Type
- Goods Carrier
Charging
- Charging Time
- 3 hours 45 minutes
Dimensions
- Overall Length (mm)
- 3315
- Overall Width (mm)
- 1490
- Overall Height (mm)
- 1770
- Ground Clearance (mm)
- 220
- Wheelbase (mm)
- 2100
- Axle Configuration
- 3x3
- Loading Length {mm}
- 1830
- Loading Width {mm}
- 1400
- Loading Height {mm}
- 285
Transmission & Loading Capacity
- Transmission
- PT Gear with Differential (Integrant)
- Payload (Kgs)
- 390 Kgs
- GVW / GCW (Kgs)
- 975 kg
- Kerb Weight (Kgs)
- 480
- Gear Box
- 1 Forward + 1 Reverse
- Power Steering
- No
Features
- Steering
- Handle bar type
- A/C
- No
- Cruise Control
- No
- Navigation System
- No
- Telematics
- No
- Tiltable Steering
- No
- Arm-rest
- No
- Seat Type
- Standard
- Driver Information Display
- Yes
- Adjustable Driver Seat
- No
- Seating Capacity
- Driver Only
- Tubeless Tyres
- No
- Seat Belts
- No
- Hill Hold
- No
Brakes & Suspension
- Brakes
- Drum Brake Hydraulicaly Actuated
- Front Suspension
- Helical spring with dampener
- Rear Suspension
- Rubber Spring with damper
- ABS
- No
- Parking Brakes
- Yes
Body Option & Cabin Type
- Chassis Type
- Chassis with Cabin
- Body Option
- Deck Body
- Cabin Type
- Day Cabin
- Tiltable Cabin
- No
Tyres
- Number of Tyre
- 3
- Rear Tyre
- 120/80 R 12
- Front Tyre
- 120/80 R 12
Others
- Chassis
- Yes
- Loading Platform Area(Sq.ft)
- 6
- Battery(Volts)
- 51.2V
- Fog Lights
- No
Sourced from the Indian domestic market; specification and availability confirmed with DAX at enquiry.
