| 1 | Engine Displacement (cc) | 225.8 cc |
| 2 | Max Power | 6.7 kW |
| 3 | Payload (Kgs) | 426 Kgs |
| 4 | GVW / GCW (Kgs) | 864 kg |
| 5 | Mileage | 43 kmpl |
| 6 | Fuel Tank (Litres) | 28/30 Petrol-3 Ltr |

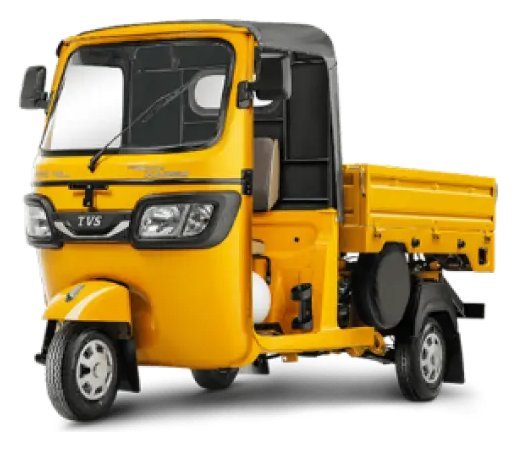

TVS King Kargo
On requestNewICEThree-wheeler
Available variants
- ZK Fi PF-4S CNG ( CNG )
- ZK Fi-4S CNG ( CNG )
Pricing
On request
Send an enquiry with the quantity and your destination country — our team confirms availability, price and shipping.
Send enquiryThe TVS King Kargo is a CNG goods-carrying three-wheeler with a 225.8 cc engine, 6.7 kW of peak power and a 426 Kgs payload. Indicative ex-showroom price in India starts from Rs. 2,45,000.
Performance
- Max Power
- 6.7 kW
- Engine Displacement (cc)
- 225.8 cc
- Fuel Tank (Litres)
- 28/30 Petrol-3 Ltr
- Engine
- 4-stroke, single-cylinder, liquid-cooled, EFI
- Fuel Type
- CNG
- Emission Norms
- BS-VI
- Max Torque
- 15.5 Nm
- Mileage City
- 25-30
- Mileage Highway
- 30-35
- Mileage
- 43 kmpl
- Gradeability (%)
- 10 %
- Max Speed (km/h)
- 60
- Engine Cylinders
- 1
- Battery Capacity
- 32 Ah
- Carrier Type
- Goods Carrier
- Product Type
- L3N (Low Speed Goods Carrier)
Dimensions
- Overall Length (mm)
- 2647
- Overall Width (mm)
- 1329
- Overall Height (mm)
- 1740
- Ground Clearance (mm)
- 169
- Wheelbase (mm)
- 1990
- Axle Configuration
- 3x3
- Loading Length {mm}
- 1500
- Loading Width {mm}
- 1300
Transmission & Loading Capacity
- Transmission
- Manual
- Payload (Kgs)
- 426 Kgs
- GVW / GCW (Kgs)
- 864 kg
- Kerb Weight (Kgs)
- 438
- Gear Box
- 4 Forward + 1 Reverse
- Clutch
- Constant Mesh, Fork & Cam Type Shift Mechanism
- Power Steering
- No
Features
- Steering
- Handle bar type
- A/C
- No
- Cruise Control
- No
- Navigation System
- No
- Telematics
- No
- Tiltable Steering
- No
- Arm-rest
- No
- Seat Type
- Standard
- Driver Information Display
- Yes
- Adjustable Driver Seat
- No
- Seating Capacity
- Driver Only
- Tubeless Tyres
- No
- Seat Belts
- No
- Hill Hold
- No
Brakes & Suspension
- Brakes
- Hydraulic Drum Brakes
- Front Suspension
- Swing Arm with Hydraulic Damper & Coil Spring
- Rear Suspension
- Swing Arm with Hydraulic Damper & Coil Spring
- ABS
- No
- Parking Brakes
- Yes
Body Option & Cabin Type
- Chassis Type
- Semi Monocoque
- Body Option
- Deck Body
- Cabin Type
- Day Cabin
- Tiltable Cabin
- No
Tyres
- Number of Tyre
- 3
- Rear Tyre
- 4.00 - 8,76F 6 PR
- Front Tyre
- 4.00 - 8,76F 6 PR
Others
- Chassis
- Yes
- Loading Platform Area(Sq.ft)
- 21.74
- Battery(Volts)
- 12 V
- Fog Lights
- No
Sourced from the Indian domestic market; specification and availability confirmed with DAX at enquiry.
