Atul Auto — manufacturer imagery from the official website — source
| 1 | Engine Displacement (cc) | 395 cc |
| 2 | Max Power | 9 hp |
| 3 | Payload (Kgs) | 500 Kgs |
| 4 | GVW / GCW (Kgs) | 1020 kg |
| 5 | Mileage | 30.4 kmpl |
| 6 | Fuel Tank (Litres) | 40 Ltr |

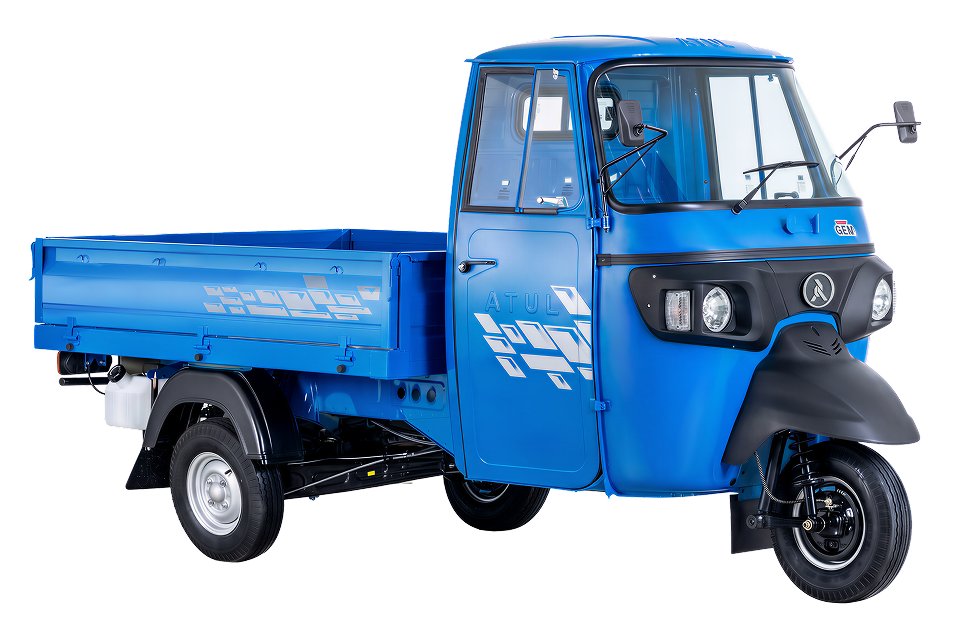

Atul Auto GEM Cargo
On requestNewICEThree-wheeler
Available variants
- 2260/CNG Aqua 6F ( CNG )
- 2260/CNG ( CNG )
- 1925/Delivery Van ( Diesel )
- 2105/Diesel ( Diesel )
- 1925/Petrol ( Petrol )
Pricing
On request
Send an enquiry with the quantity and your destination country — our team confirms availability, price and shipping.
Send enquiryThe Atul Auto GEM Cargo is a CNG goods-carrying three-wheeler with a 395 cc engine, 9 hp of peak power and a 500 Kgs payload.
Performance
- Max Power
- 9 hp
- Engine Displacement (cc)
- 395 cc
- Fuel Tank (Litres)
- 40 Ltr
- Engine
- 4 Stroke, Single Cylinder, Spark Ignition, Water Cooled
- Fuel Type
- CNG
- Emission Norms
- BS-VI
- Max Torque
- 23 Nm
- Mileage City
- 25-30
- Mileage Highway
- 30-35
- Mileage
- 30.4 kmpl
- Gradeability (%)
- 23 %
- Max Speed (km/h)
- 25
- Engine Cylinders
- 1
- Turning Radius (mm)
- 2500
- Battery Capacity
- 100 Ah
- Carrier Type
- Goods Carrier
- Product Type
- L3N (Low Speed Goods Carrier)
Dimensions
- Overall Length (mm)
- 3480
- Overall Width (mm)
- 1550
- Overall Height (mm)
- 1830
- Ground Clearance (mm)
- 255
- Wheelbase (mm)
- 2260
- Axle Configuration
- 3x3
- Loading Length {mm}
- 2005
- Loading Width {mm}
- 1550
- Loading Height {mm}
- 360
Transmission & Loading Capacity
- Transmission
- Manual
- Payload (Kgs)
- 500 Kgs
- GVW / GCW (Kgs)
- 1020 kg
- Kerb Weight (Kgs)
- 520
- Gear Box
- 4 Forward + 1 Reverse
- Clutch
- Wet Multiplate Type
- Power Steering
- No
Features
- Steering
- Handle bar type
- A/C
- No
- Cruise Control
- No
- Navigation System
- No
- Telematics
- No
- Tiltable Steering
- No
- Arm-rest
- No
- Seat Type
- Standard
- Driver Information Display
- Yes
- Adjustable Driver Seat
- No
- Seating Capacity
- Driver Only
- Tubeless Tyres
- No
- Seat Belts
- No
- Hill Hold
- No
Brakes & Suspension
- Brakes
- Hydraulic Drum Brakes
- Front Axle
- Rigid front axle
- Front Suspension
- Hydraulic Telescopic Double Acting, Helical Compression Spring and Damper
- Rear Axle
- Live rear axle
- Rear Suspension
- Hydraulic Telescopic Double Acting, Heavy duty Spring Rubber Spring and Damper
- ABS
- No
- Parking Brakes
- Yes
Body Option & Cabin Type
- Chassis Type
- Monocoque Chassis
- Body Option
- Deck Body
- Cabin Type
- Day Cabin
- Tiltable Cabin
- No
Tyres
- Number of Tyre
- 3
- Rear Tyre
- 4.5-10-8 PR
- Front Tyre
- 4.5-10-8 PR
Others
- Chassis
- Yes
- Battery(Volts)
- 12 V
- Fog Lights
- No
Sourced from the Indian domestic market; specification and availability confirmed with DAX at enquiry.
