Schematic diagram — photography not yet supplied for this model.
| 1 | Engine Displacement (cc) | - cc |
| 2 | Max Power | 11 hp |
| 3 | Payload (Kgs) | - Kgs |
| 4 | GVW / GCW (Kgs) | 950 kg |
| 5 | Mileage | - kmpl |
| 6 | Fuel Tank (Litres) | - Ltr |

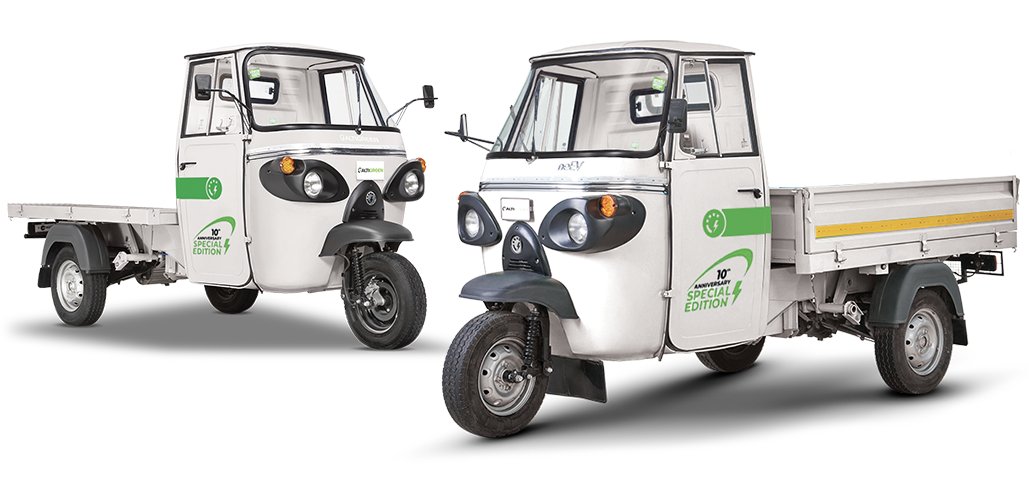

Altigreen NEEV Flatbed
On requestNewEVThree-wheeler
Available variants
- 2140/Electric ( Electric )
Pricing
On request
Send an enquiry with the quantity and your destination country — our team confirms availability, price and shipping.
Send enquiryThe Altigreen NEEV Flatbed is an electric three-wheeler with 11 hp of peak power and a - Kgs payload.
Performance
- Max Power
- 11 hp
- Engine Displacement (cc)
- - cc
- Fuel Tank (Litres)
- - Ltr
- Fuel Type
- Electric
- Max Torque
- 45 Nm
- Top Speed
- 53 km/h
- Mileage
- - kmpl
- Gradeability (%)
- 17 %
- Range
- 181 km
- Type of Motor
- 3-Phase Electric Motor
Dimensions
- Overall Length (mm)
- 3225
- Overall Width (mm)
- 1446
- Overall Height (mm)
- 1700
- Ground Clearance (mm)
- 220
- Wheelbase (mm)
- 2140
- Loading Length {mm}
- 1750
- Loading Width {mm}
- 1450
- Loading Height {mm}
- 80
Transmission & Loading Capacity
- Transmission
- Automatic
- Payload (Kgs)
- - Kgs
- GVW / GCW (Kgs)
- 950 kg
- Gear Box
- Fixed Ratio Single-gear
Features
- Steering
- Handle bar type
- Seat Type
- Standard
- Driver Information Display
- Yes
- Seating Capacity
- Driver Only
- Tubeless Tyres
- Yes
Brakes & Suspension
- Brakes
- Disc and Drum Brakes
- Front Suspension
- Suspension with helical springs
- Rear Suspension
- Individual Suspension
- Parking Brakes
- Yes
Body Option & Cabin Type
- Chassis Type
- Chassis with Cabin
- Body Option
- Flat Bed Body
- Cabin Type
- Day Cabin
Tyres
- Number of Tyre
- 3
- Rear Tyre
- 145 R12 LT 8PR
- Front Tyre
- 145 R12 LT 8PR
Others
- Chassis
- Yes
- Battery(Volts)
- LiFePO4 battery, 48 V 240 AH
Sourced from the Indian domestic market; specification and availability confirmed with DAX at enquiry.
